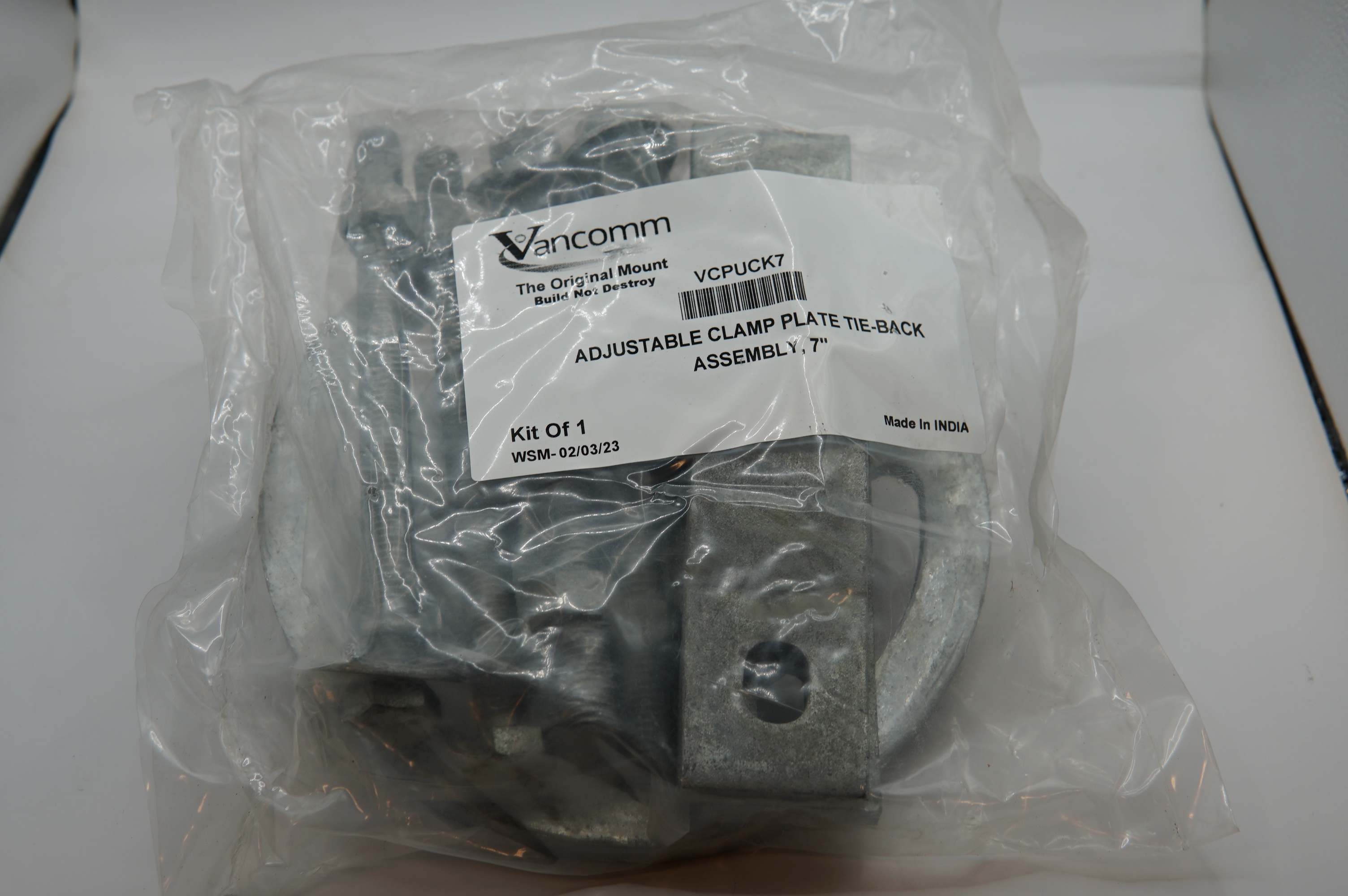

7" Adjustable Clamp Tie-Back Assembly
Item Number: VCPUCK7
$42.00
/ Each
Package Quantity:
1

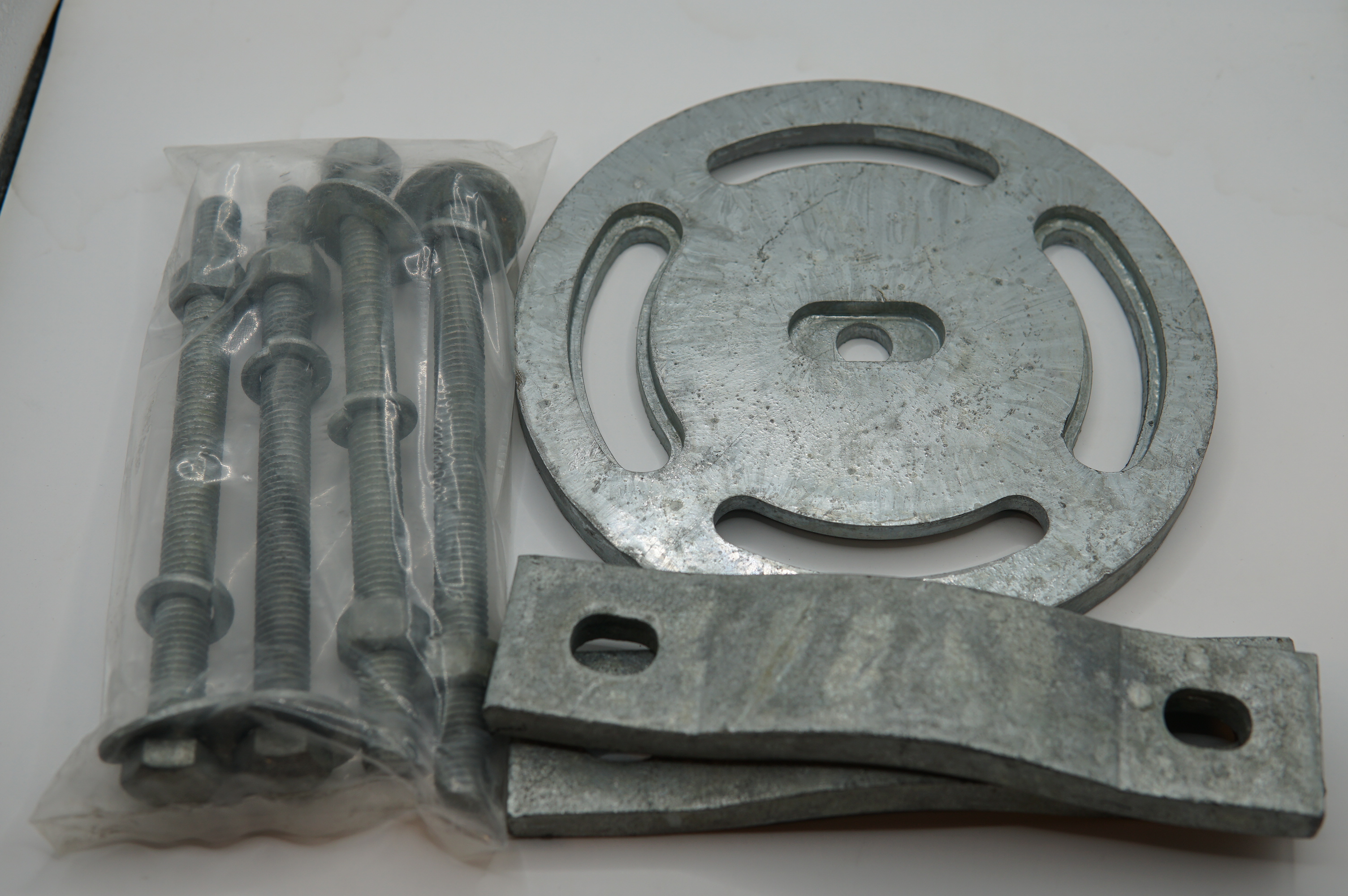

- 7" adjustable clamp tie-back assembly for tower and antenna mounting. Fits 1-1/2" OD through 4-1/2" OD pipe. Built around a 1/2" thick, 7" diameter A36 flat disk clamp plate with two clamp bars, hot-dip galvanized. Supplied with four 1/2"-13 X 6-1/2" Grade 5 galvanized bolt assemblies.
- Clamp plate, clamp bars and all mounting hardware included.
- Fits 1-1/2" OD through 4-1/2" OD pipe

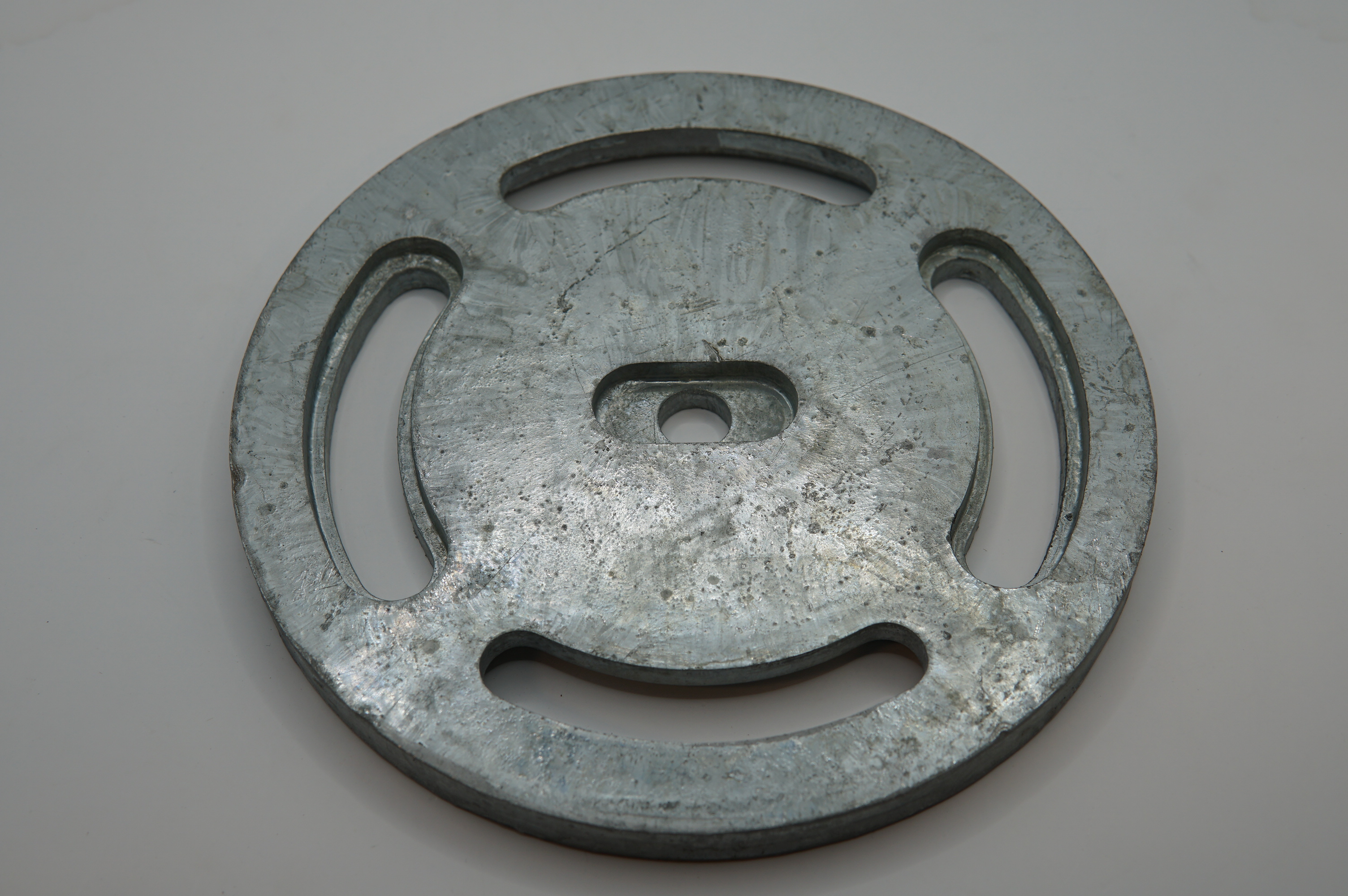

- 7" diameter flat disk clamp plate, 1/2" thick A36 steel

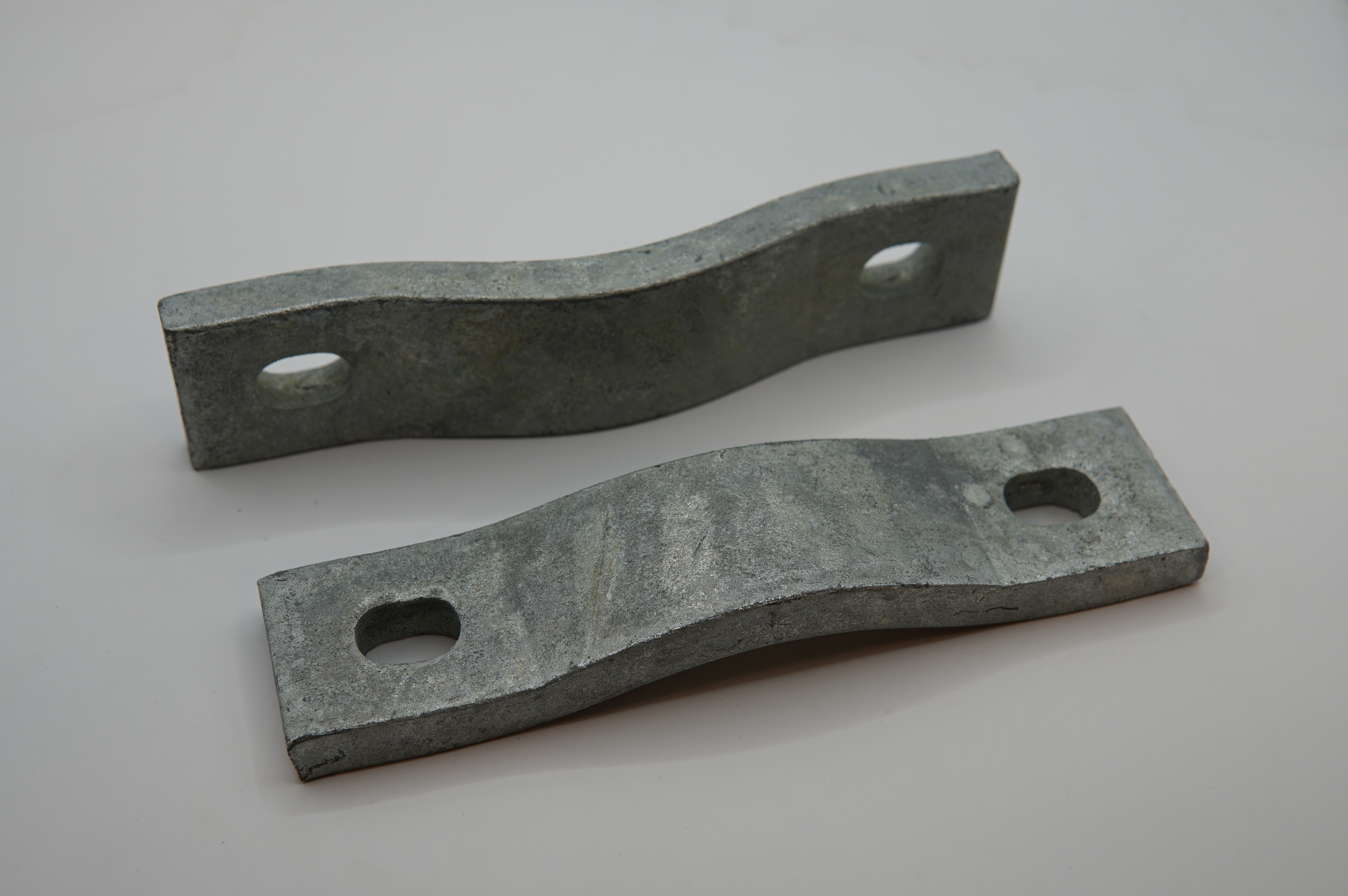

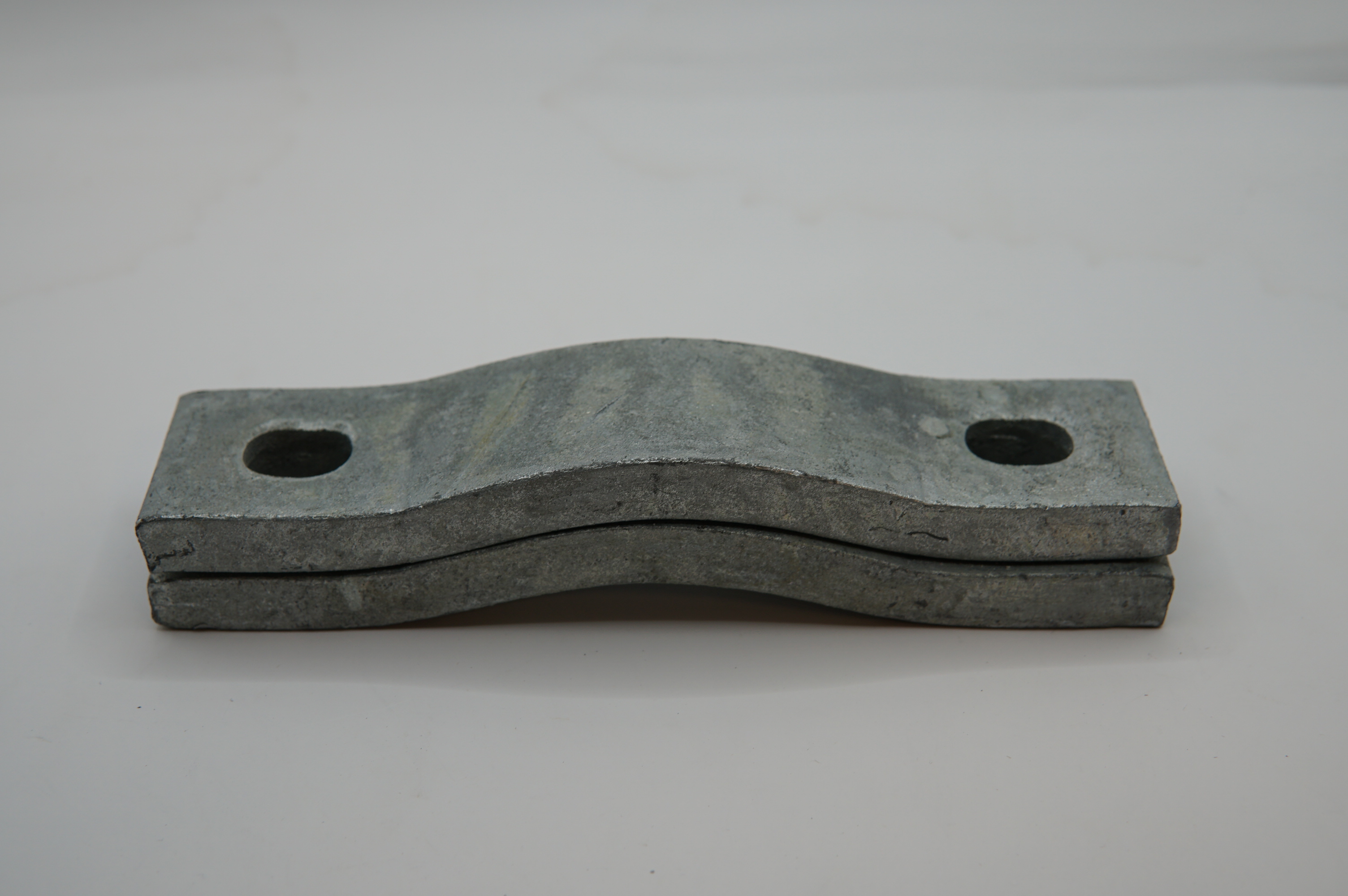

- Adjustable clamp bars seat the plate across a range of pipe sizes
$42.00
/ $42.00 Each
In Stock
Details
Vendor
ShopMetal
For Pipe Size
1-1/2" OD to 4-1/2" OD
Plate Dimensions (P)
1/2" thick X 7" diameter
Bolt Size
1/2"-13 X 6-1/2", Grade 5
Material
A36 Steel
Finish
Hot-Dip Galvanized
Includes
1 clamp plate, 2 clamp bars, 4 bolt assemblies
Key Features
- Fits 1-1/2" OD through 4-1/2" OD pipe
- 7" diameter flat disk clamp plate, 1/2" thick A36 steel
- Adjustable clamp bars seat the plate across a range of pipe sizes

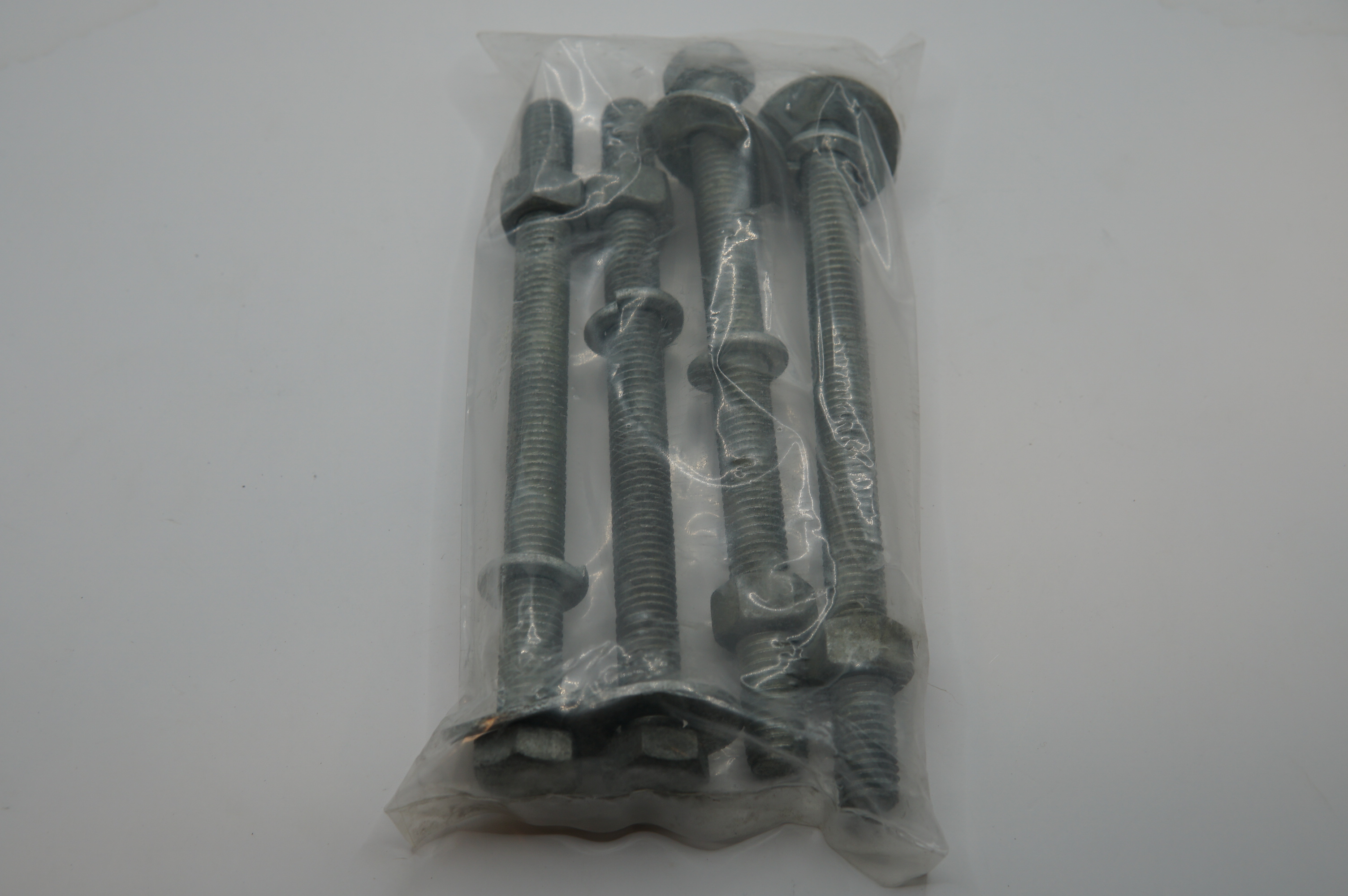

- Four 1/2"-13 X 6-1/2" Grade 5 galvanized bolt assemblies included
- Hot dip galvanized for outdoor and tower service
