1/4 x 1 5/8 Titen HD Threaded Rod Hanger

Item Number: THDB25158RH

$123.04

/ Box of 100

Size: 1/4 x 1 5/8
Package Quantity: 100
  • Zinc Plated / Carbon Steel

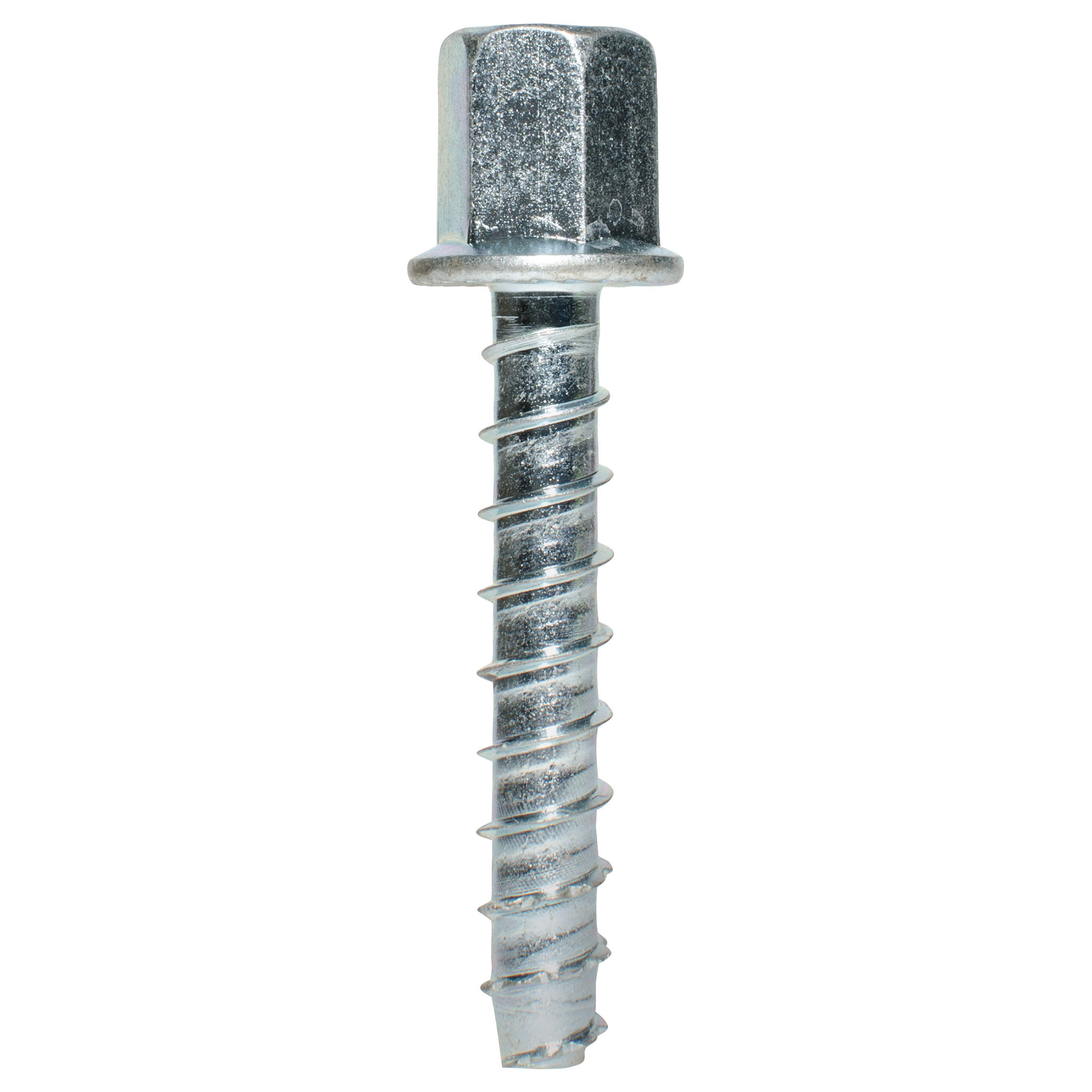

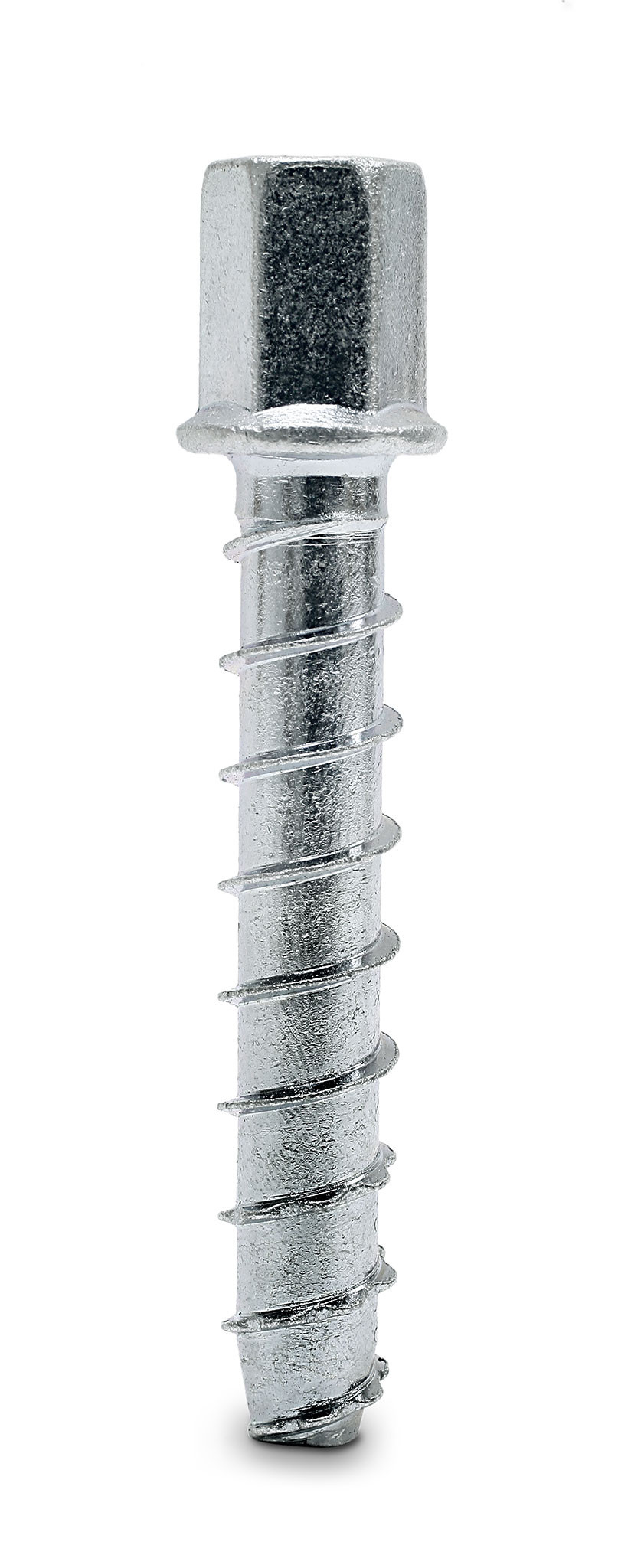

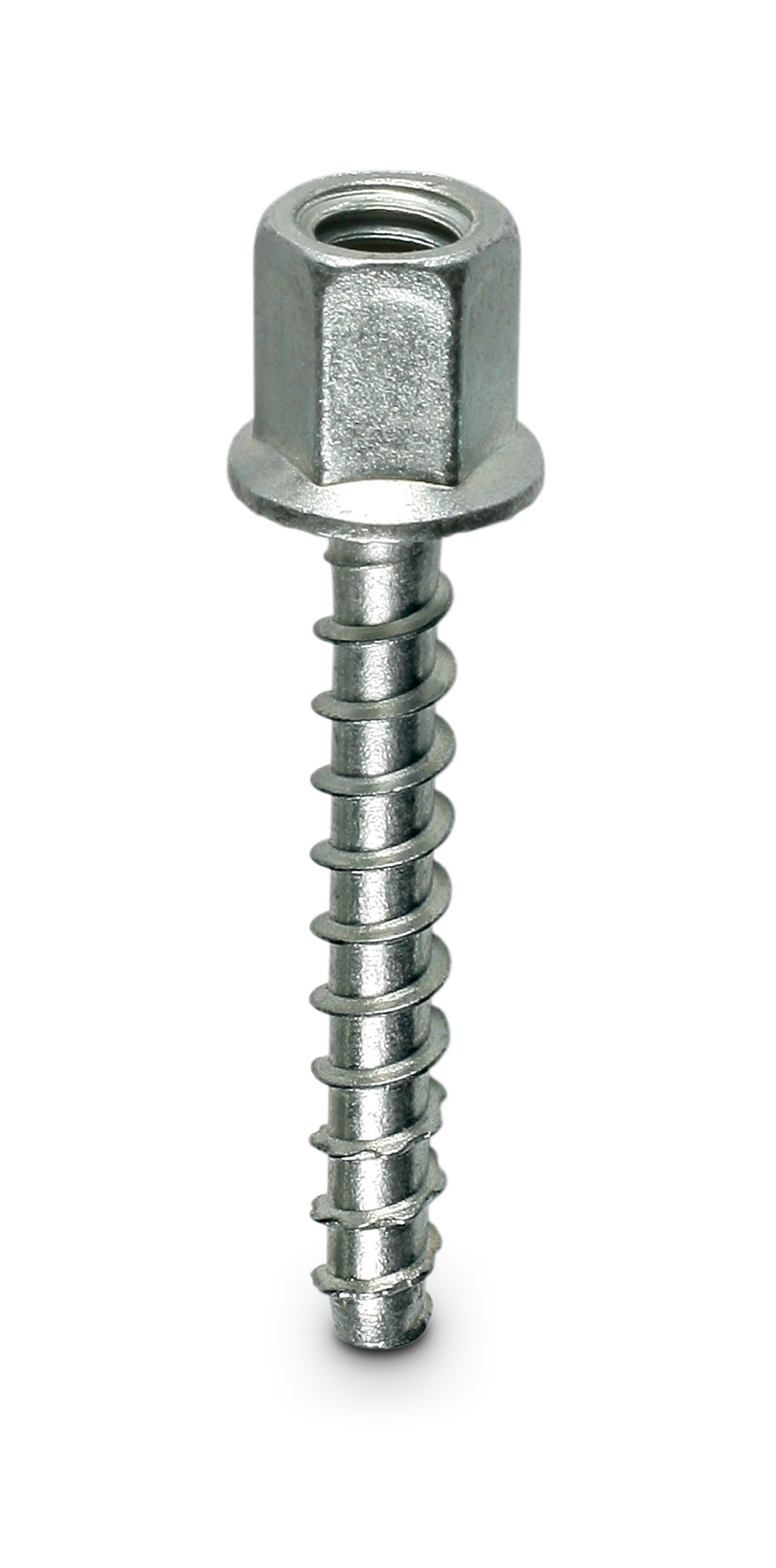

  • The Titen HD threaded rod hanger is a high-strength screw anchor designed to suspend threaded rod from concrete slabs, beams or concrete over metal in order to hang pipes, cable trays and other HVAC equipment. The anchor offers low installation torque with no secondary setting, and has been tested to offer industry-leading performance in cracked and uncracked concrete — even in seismic loading conditions.
  • Thread design undercuts to efficiently transfer the load to the base material
  • Serrated cutting teeth and thread design enable quick and easy installation
  • Specialized heat-treating process creates tip hardness to facilitate cutting while the anchor body remains ductile

$123.04

/ $123.04 Box of 100
In Stock

Product Details

Details
Vendor
Simpson Strong Tie
Weight (lbs)
0.037
Model No.
THDB25158RH
Coating/Material
Zinc Plated / Carbon Steel
Size (in.)
1/4 x 1 5/8
Drill Bit Dia. (in.)
1/4
Wrench Size (in.)
3/8
Box Qty.
100
Carton Qty.
500
Rod Dia. (in.)
1/4
Min. Embedment (in.)
1 5/8
PackageType
Pack
PackageType
Carton
PackageType
Pallet
Upc
50707392464452
Upc
707392881544
Upc
10707392464454
PricePerUnit
0.7690
PricePerUnit
0.7690
PricePerUnit
0.7690
PackageNetPrice
37681.0000
PackageNetPrice
76.9000
PackageNetPrice
384.5000
WeightLbs
18.50
WeightLbs
3.70
WeightLbs
1813.00
Packaging Quantity
49000
Packaging Quantity
100
Packaging Quantity
500
OrderIncrement
1
OrderIncrement
1
OrderIncrement
1
Key Features
  • Thread design undercuts to efficiently transfer the load to the base material
  • Serrated cutting teeth and thread design enable quick and easy installation
  • Specialized heat-treating process creates tip hardness to facilitate cutting while the anchor body remains ductile

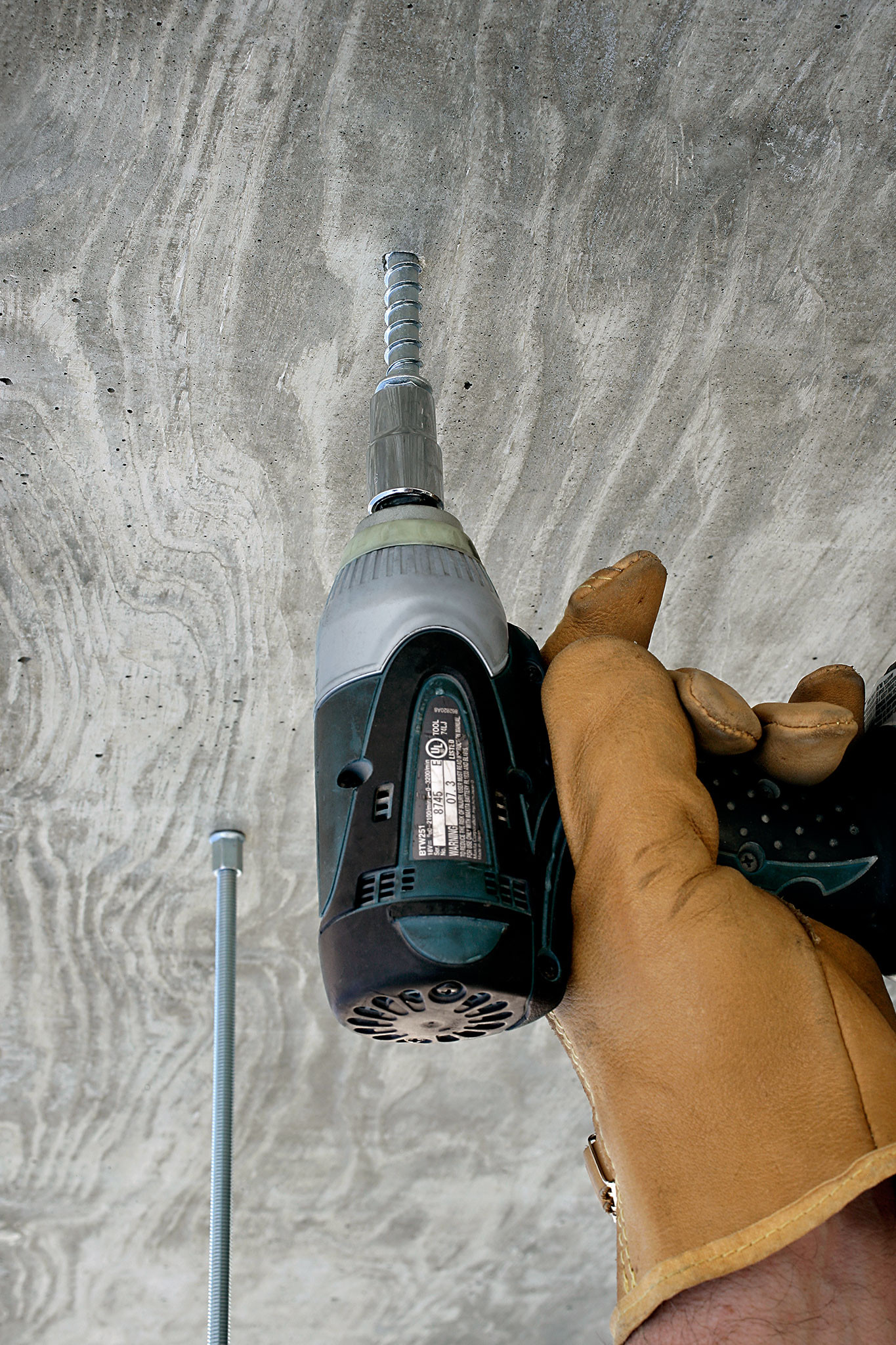

  • Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits — no special tools required
  • Installs with standard-sized sockets
  • Use in dry interior environments only
  • Code listed for cracked and uncracked concrete applications under the 2015, 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713
  • FM listed
