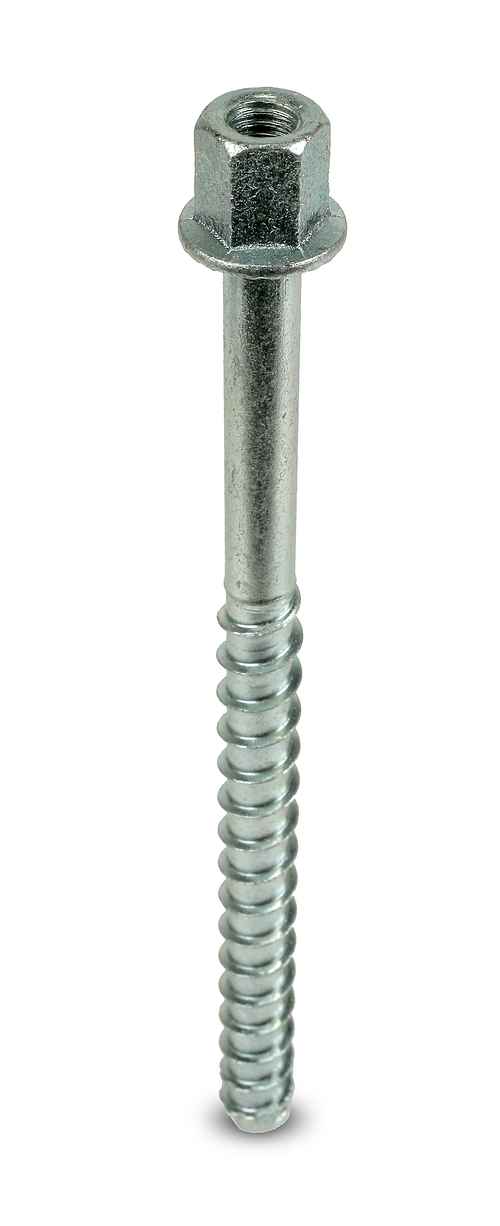

1/2 x 9 3/4 Titen HD Rod Coupler
Item Number: THD50934RC
$123.84
/ Box of 20
Size: 1/2 x 9 3/4
Package Quantity: 20
Package Quantity: 20
- Zinc Plated / Carbon Steel

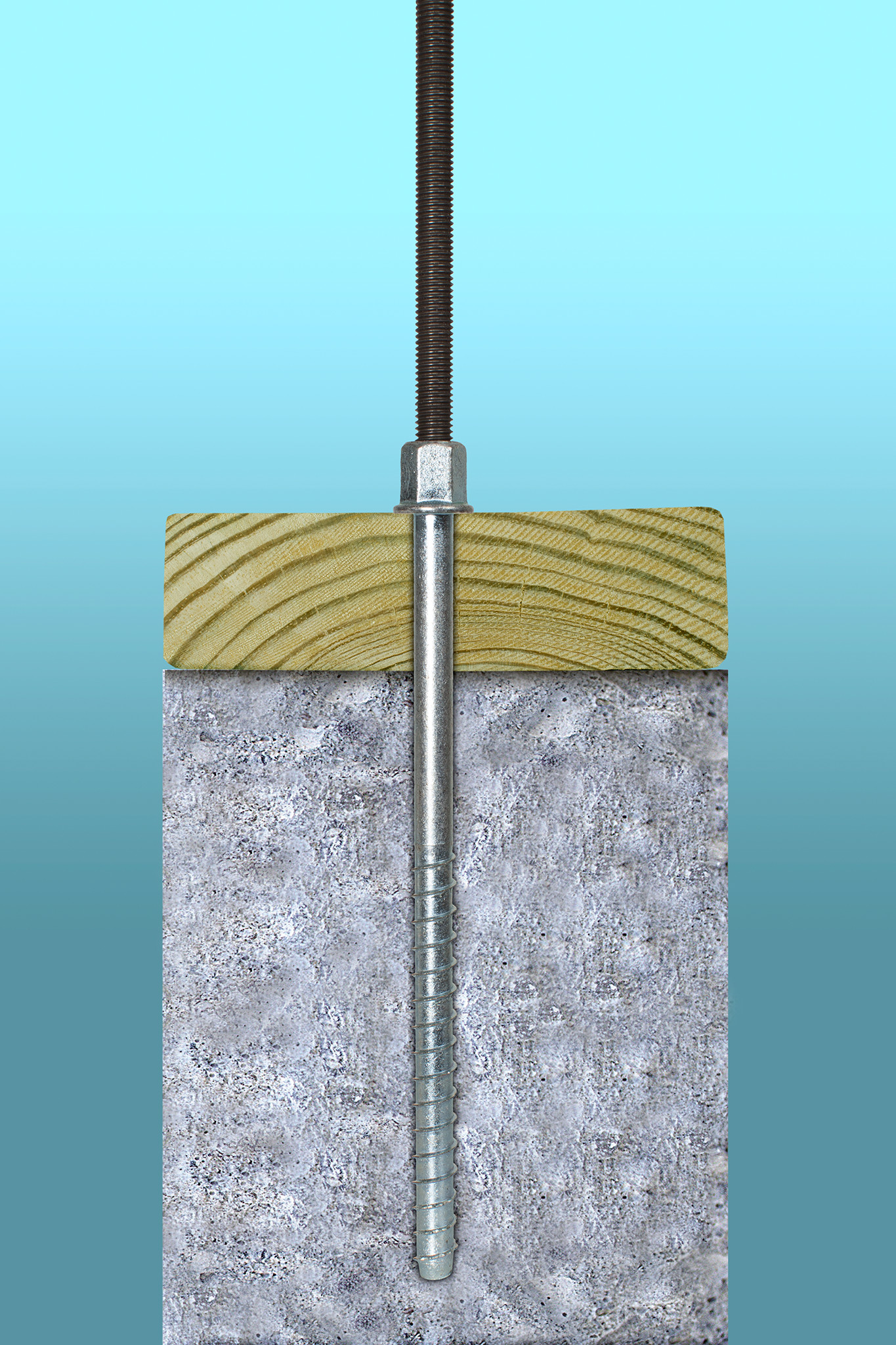

- The Titen HD Rod Coupler is designed to be used in conjunction with a single or multi-story rod tiedown system. This anchor provides a fast and simple way to attach threaded rod to a concrete stem wall or thickened slab footing. Unlike adhesive anchors, the installation requires no special tools, cure time or secondary setting process; just drill a hole and drive the anchor.
- Code listed in ESR-2713 for wind and seismic loading.
- The serrated cutting teeth and thread design enable the Titen HD rod coupler to be installed quickly and easily. Less installation time translates to lower installed cost.
- The specialized heat-treating process creates tip hardness to facilitate cutting while the body remains ductile.
$123.84
/ $123.84 Box of 20
In Stock
Product Details
Details
Vendor
Simpson Strong Tie
Weight (lbs)
0.679
Model No.
THD50934RC
Coating/Material
Zinc Plated / Carbon Steel
Size (in.)
1/2 x 9 3/4
Drill Bit Dia. (in.)
1/2
Wrench Size (in.)
3/4
Box Qty.
20
Carton Qty.
40
Rod Dia. (in.)
1/2
PackageType
Carton
PackageType
Pallet
PackageType
Pack
Upc
50707392260801
Upc
707392260820
Upc
10707392260803
PricePerUnit
3.8700
PricePerUnit
3.8700
PricePerUnit
3.8700
PackageNetPrice
11145.6000
PackageNetPrice
77.4000
PackageNetPrice
154.8000
WeightLbs
27.16
WeightLbs
13.58
WeightLbs
1955.52
Packaging Quantity
2880
Packaging Quantity
20
Packaging Quantity
40
OrderIncrement
1
OrderIncrement
1
OrderIncrement
1
Key Features
- Code listed in ESR-2713 for wind and seismic loading.
- The serrated cutting teeth and thread design enable the Titen HD rod coupler to be installed quickly and easily. Less installation time translates to lower installed cost.
- The specialized heat-treating process creates tip hardness to facilitate cutting while the body remains ductile.
- No special setting tools are required. The Titen HD rod coupler installs with regular or hammer drill, ANSI size bits and standard sockets.
- Compatible with threaded rods in 3/8" and 1/2" diameters.
- Use in dry interior environments only.
