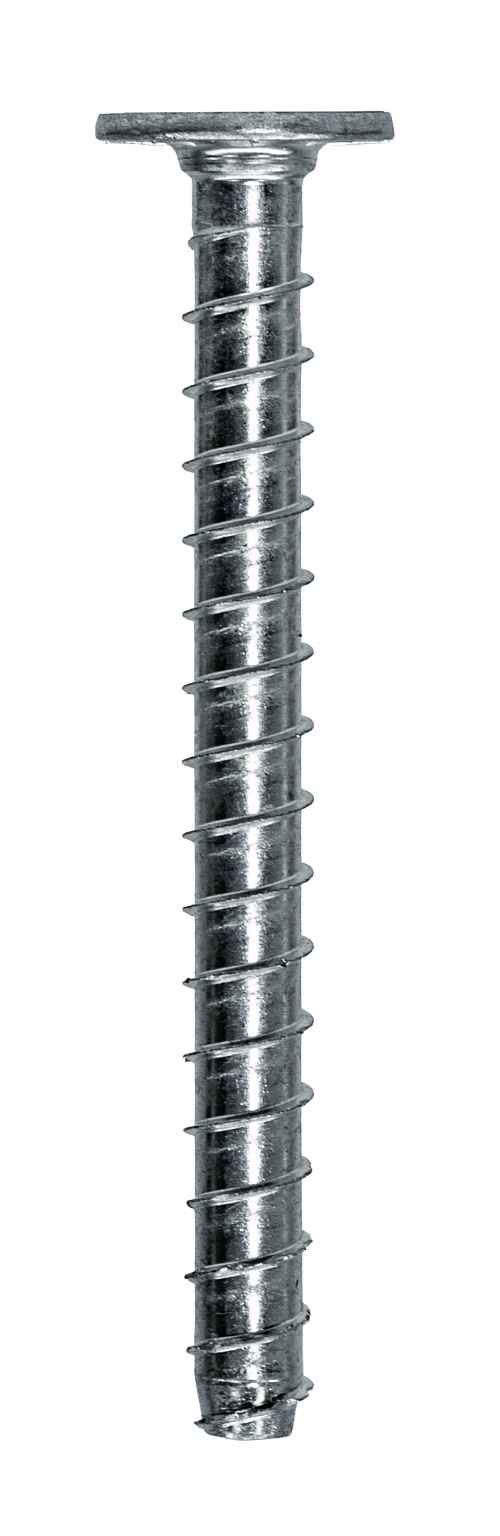

1/2 x 6 Titen HD Washer-Head Style Heavy-Duty Screw Anchor

Item Number: THD50600WH

$44.35

/ Box of 15

Size: 1/2 x 6
Package Quantity: 15
  • Zinc Plated / Carbon Steel

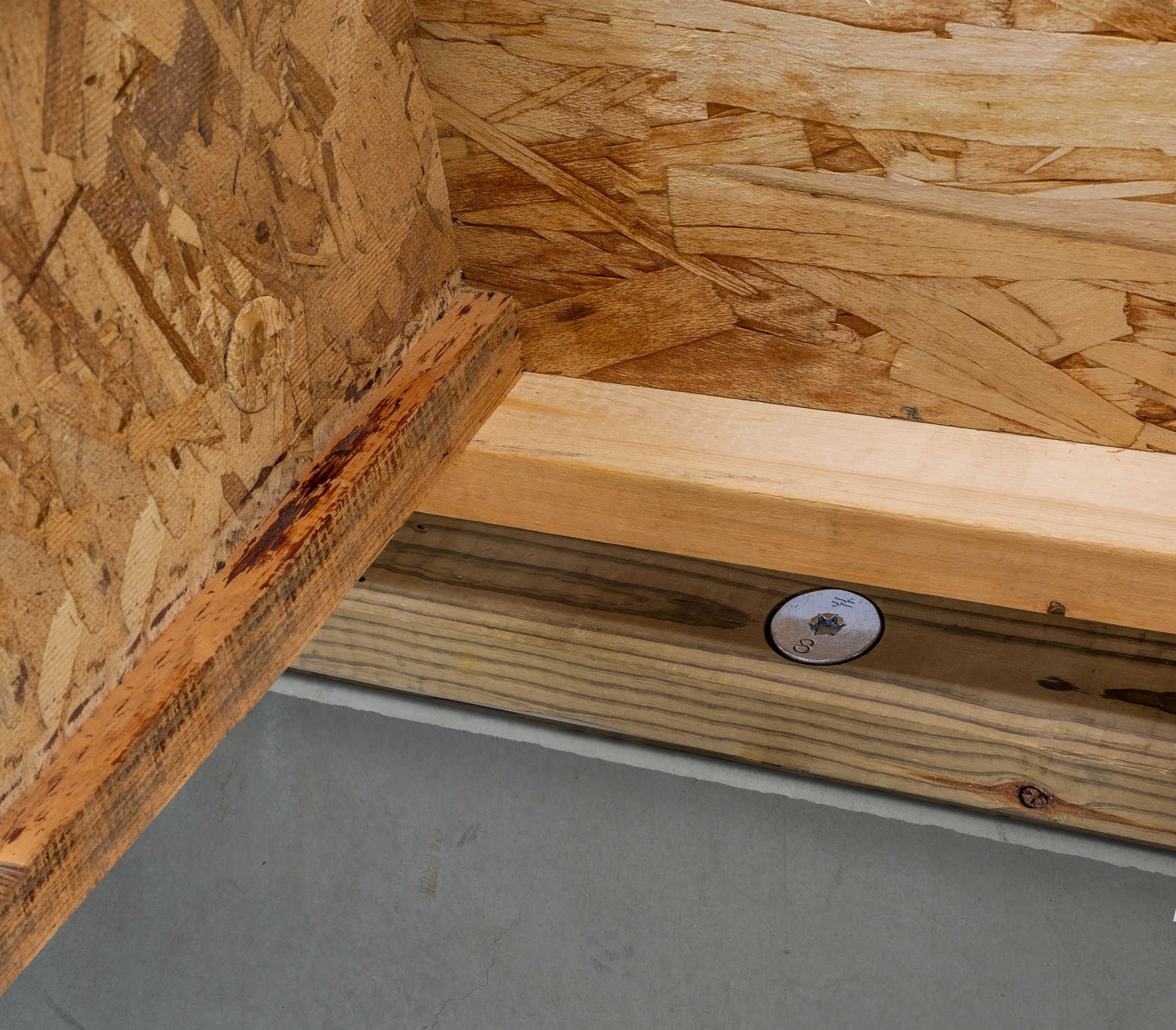

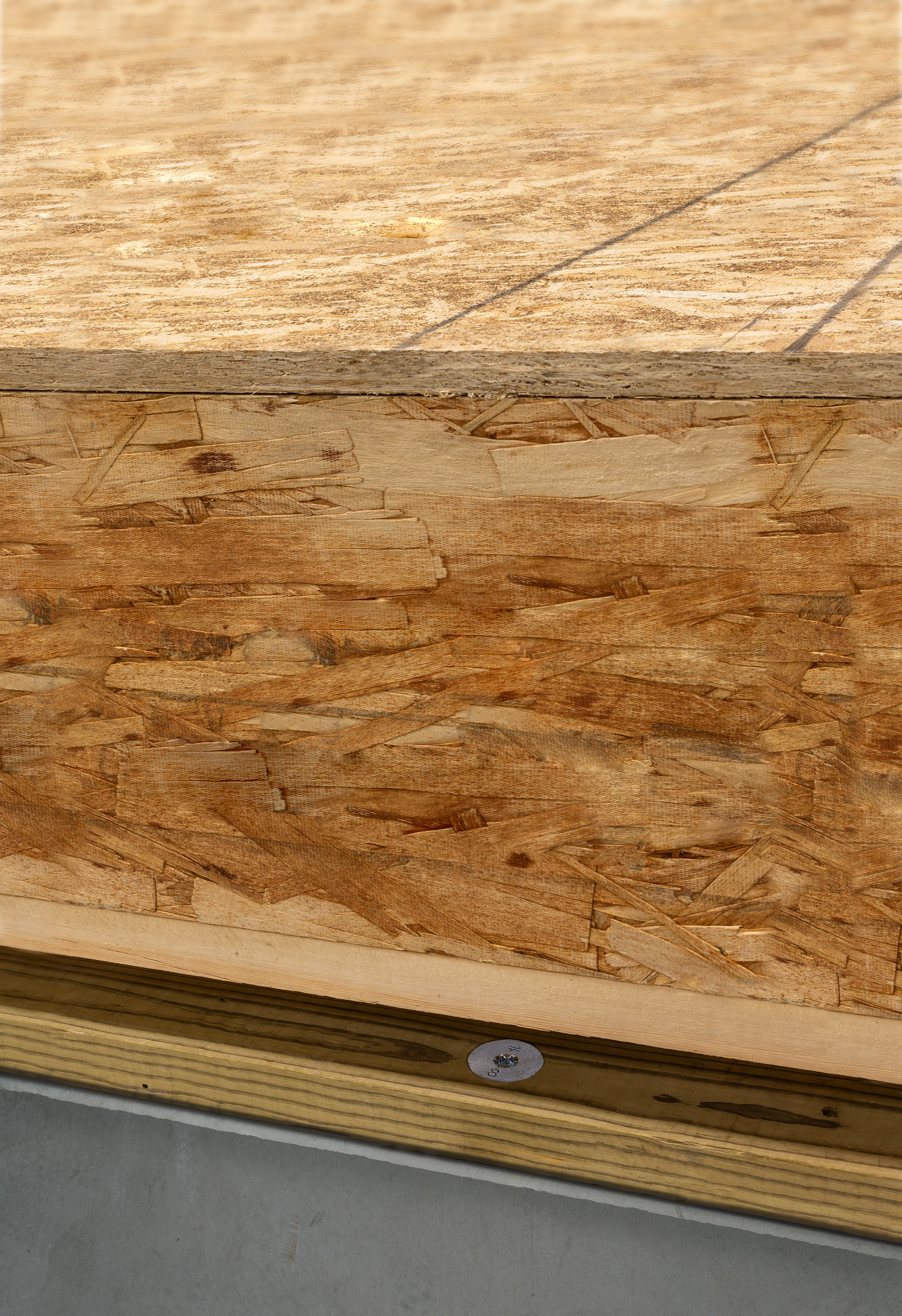

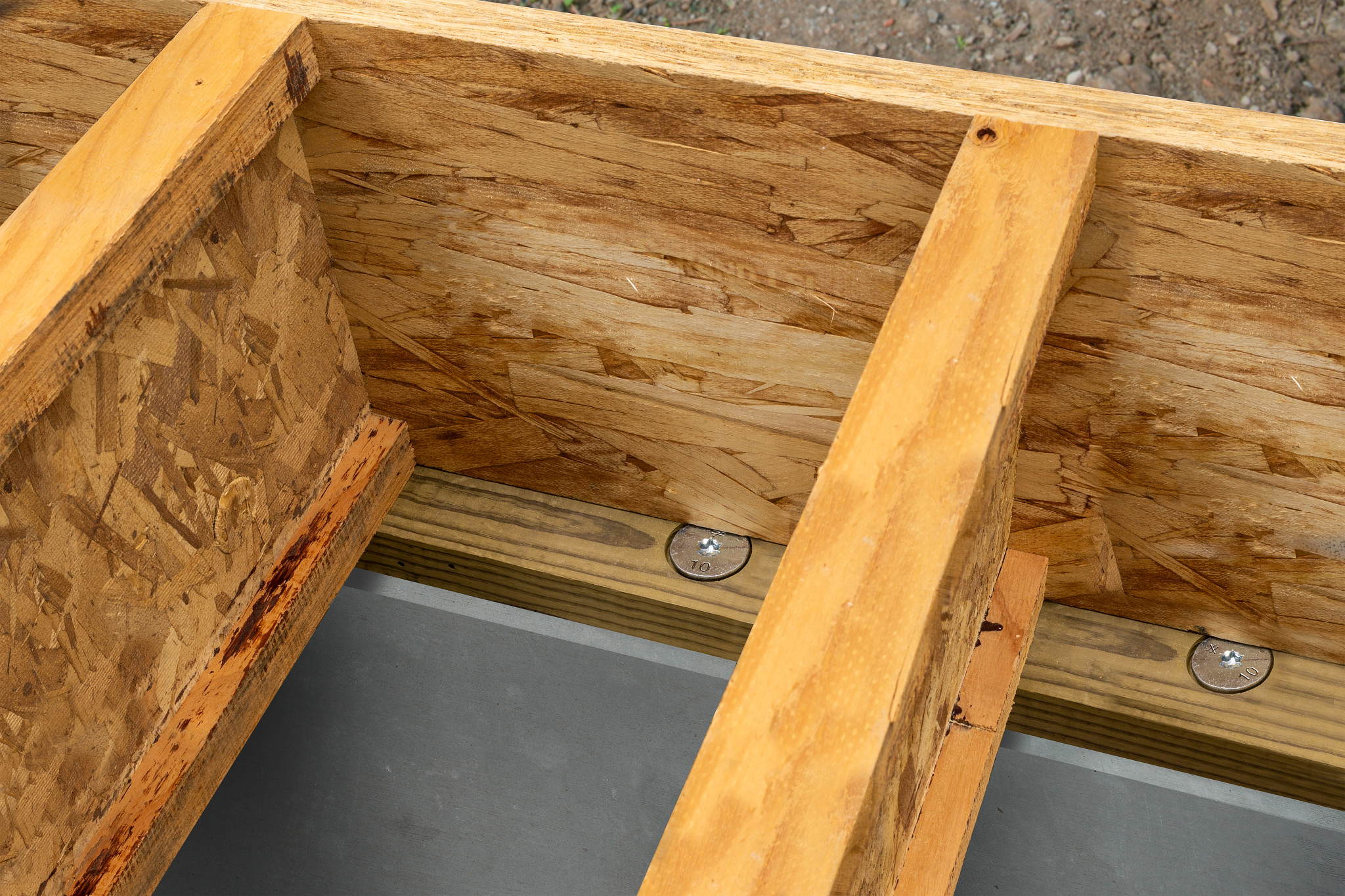

  • The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.
  • Tested in accordance with ACI 355.2 and AC193
  • Qualified for static, wind and seismic loading conditions

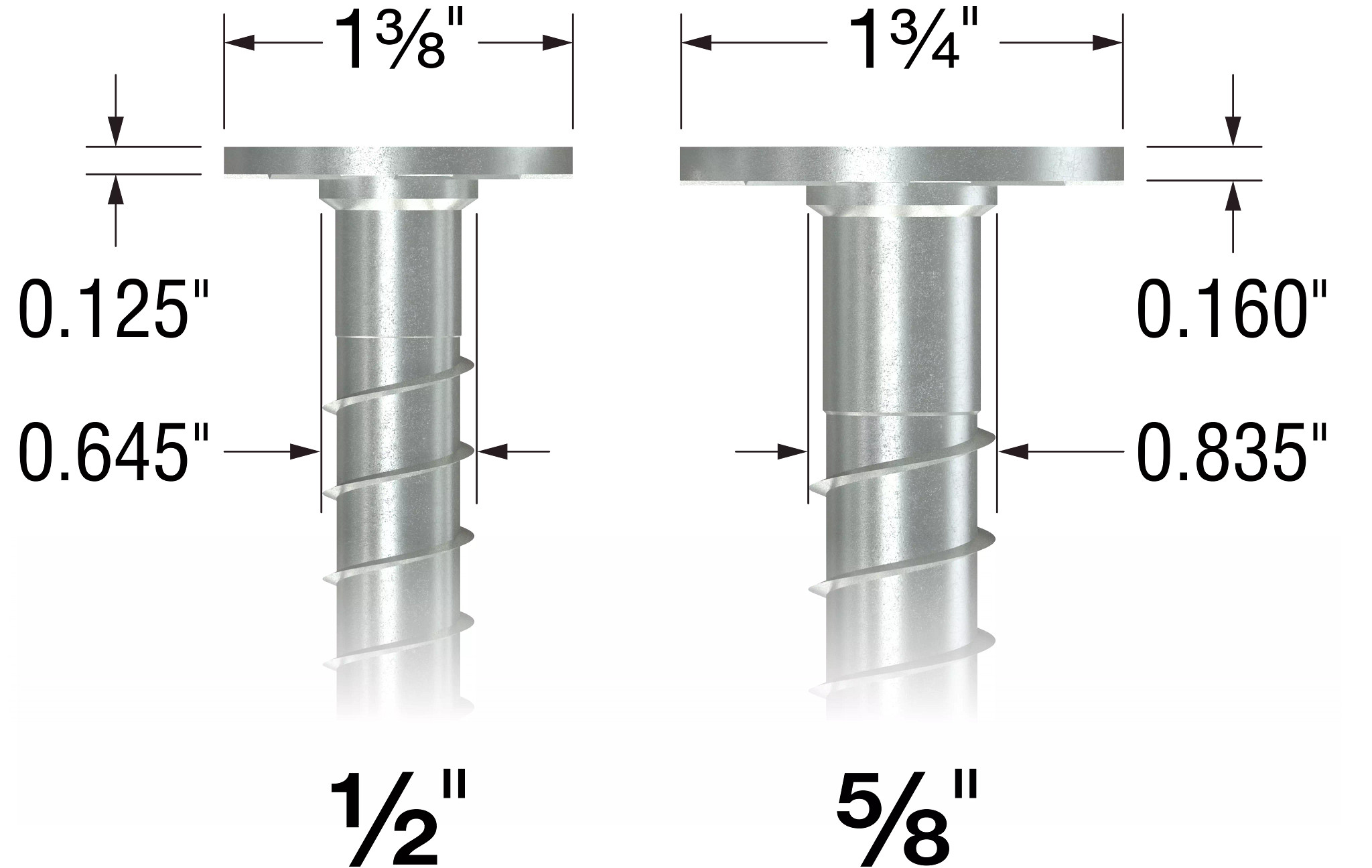

  • Available in 1/2" and 5/8" diameters

$44.35

/ $44.35 Box of 15
In Stock

Product Details

Details
Vendor
Simpson Strong Tie
Weight (lbs)
0.4187
Model No.
THD50600WH
Coating/Material
Zinc Plated / Carbon Steel
Size (in.)
1/2 x 6
Drill Bit Dia. (in.)
1/2
Packaging Qty.
15
Recommended Fixture Hole Size (in.)
11/16 to 3/4
Carton Qty.
4
Product Includes
1/2-in. socket adapter and (2) T-drive bits
PackageType
Pallet
PackageType
Pack
PackageType
Carton
Upc
707392014850
Upc
20707392014854
Upc
50707392014855
PricePerUnit
27.7200
PricePerUnit
27.7200
PricePerUnit
27.7200
PackageNetPrice
27.7200
PackageNetPrice
110.8800
PackageNetPrice
8316.0000
WeightLbs
1884.90
WeightLbs
25.13
WeightLbs
6.28
Packaging Quantity
15
Packaging Quantity
60
Packaging Quantity
4500
OrderIncrement
300
OrderIncrement
4
OrderIncrement
1
Key Features
  • Tested in accordance with ACI 355.2 and AC193
  • Qualified for static, wind and seismic loading conditions
  • Available in 1/2" and 5/8" diameters
  • Standard fractional sizes — the hole size matches the anchor size
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • For added convenience, a 1/2" socket adapter and (2) T-drive bits are included in each box
  • Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

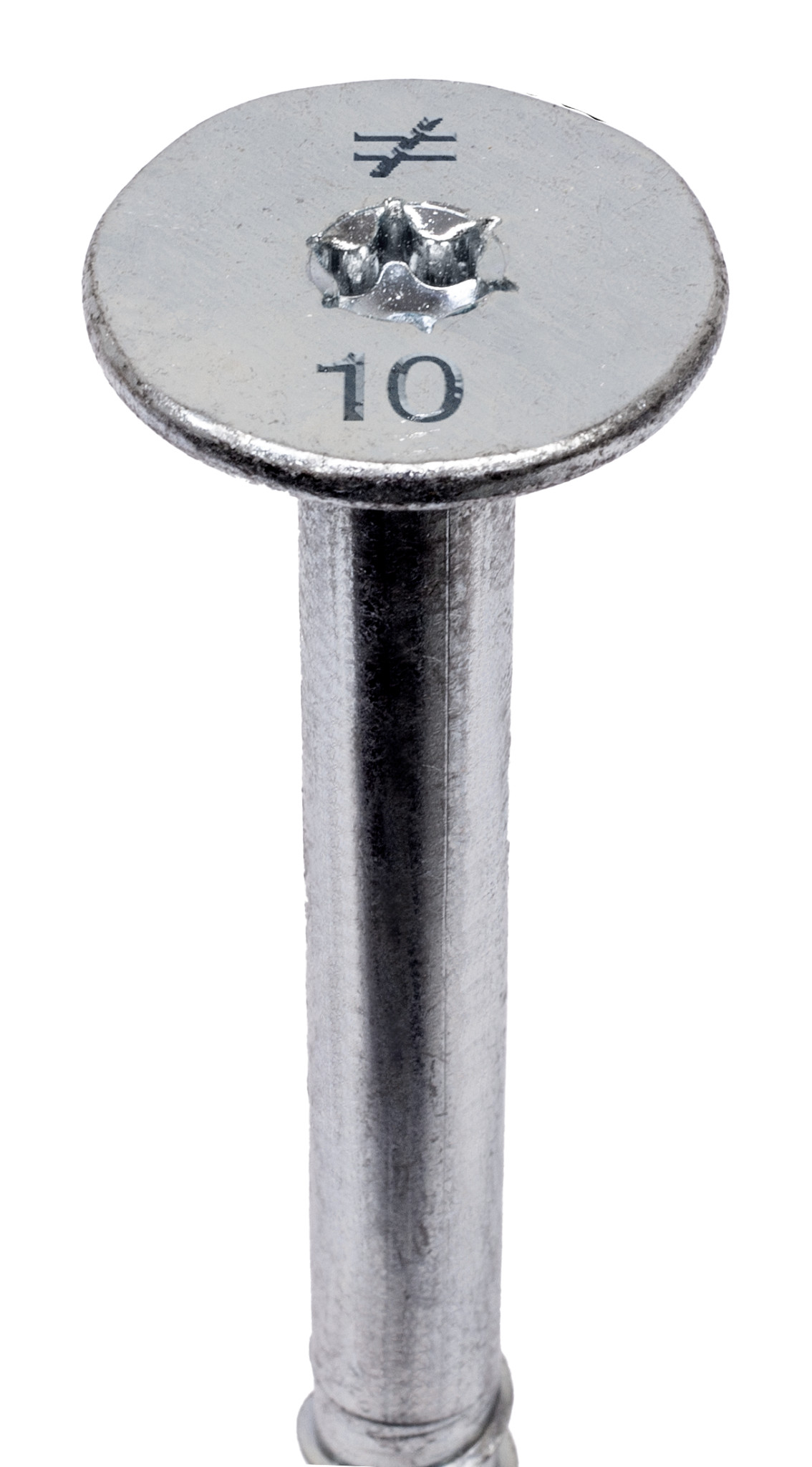

  • Washer head allows screw anchor applications incompatible with a hex head
