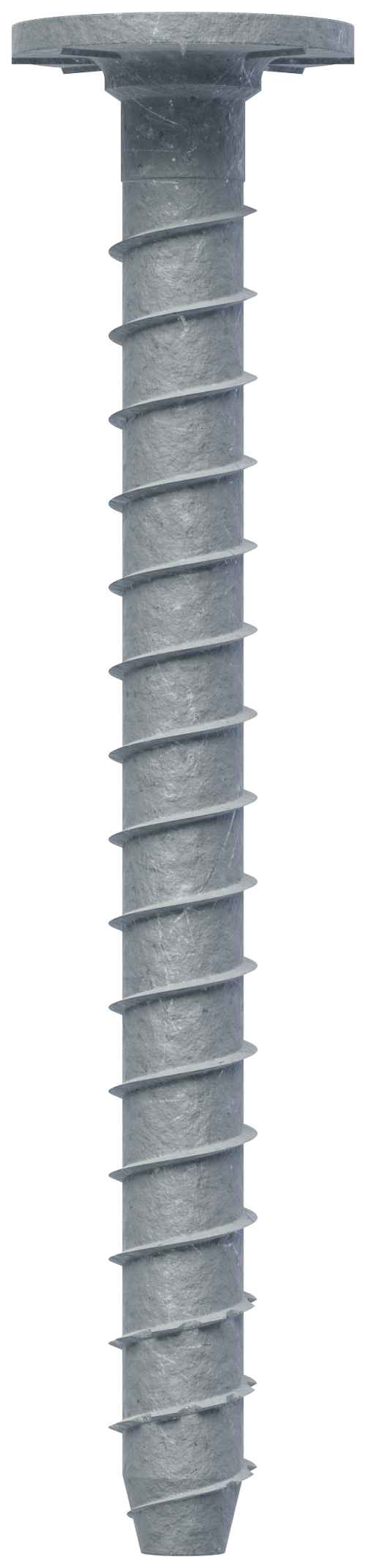

1/2 x 5 Titen HD Washer Head — Mechanically Galvanized Heavy-Duty Screw Anchor

Item Number: THD50500WHMG

$78.96

/ Box of 15

Size: 1/2 x 5
Package Quantity: 15
  • Mechanically Galvanized / Carbon Steel
  • Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions

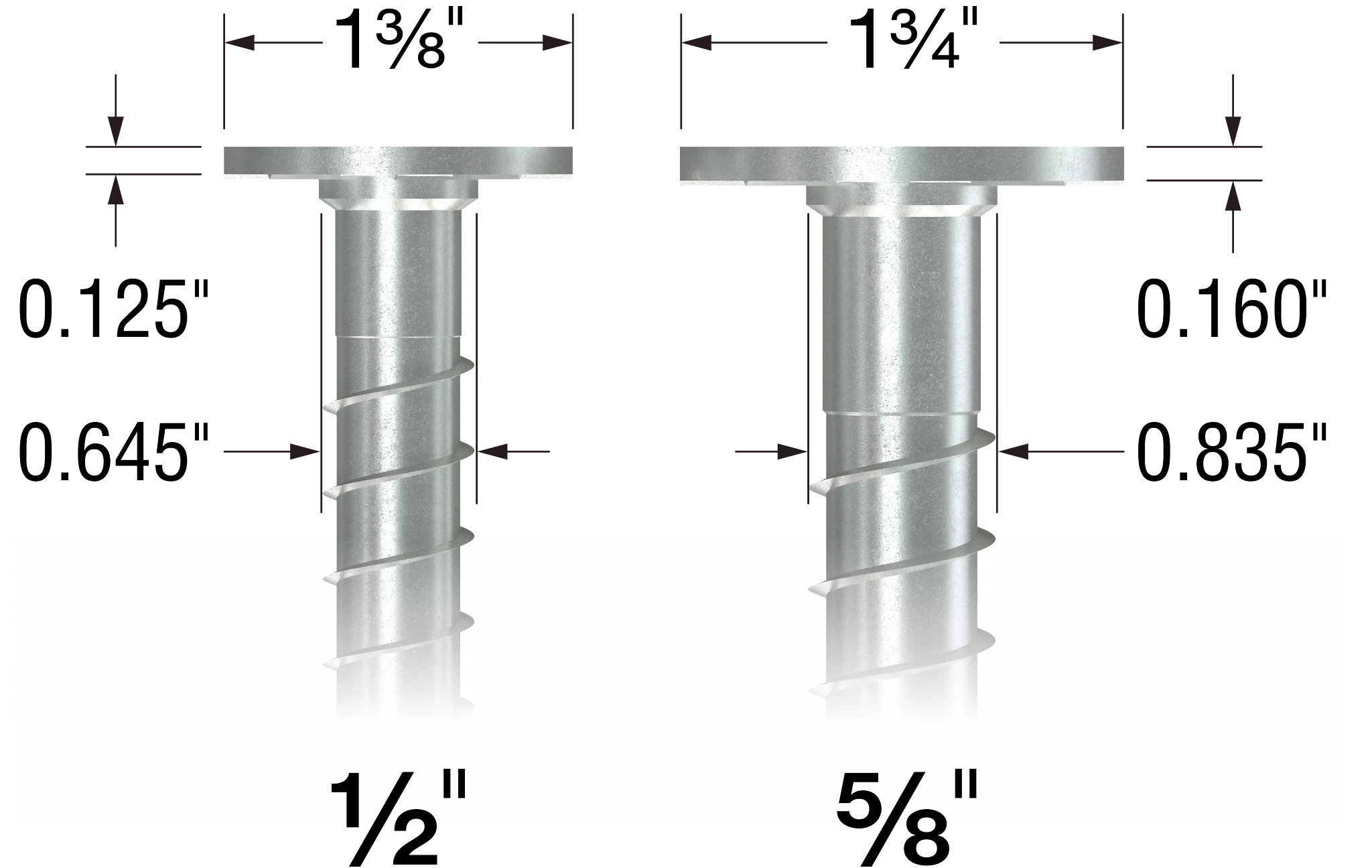

  • Available in 1/2" and 5/8" diameters
  • Standard fractional sizes — the hole size matches the anchor size

$78.96

/ $78.96 Box of 15
In Stock

Product Details

Details
Vendor
Simpson Strong Tie
Weight (lbs)
0.3693
Model No.
THD50500WHMG
Coating/Material
Mechanically Galvanized / Carbon Steel
Size (in.)
1/2 x 5
Drill Bit Dia. (in.)
1/2
Packaging Qty.
15
Recommended Fixture Hole Size (in.)
11/16 to 3/4
Carton Qty.
4
Product Includes
1/2-in. socket adapter and (2) T-drive bits
PackageType
Pallet
PackageType
Each
PackageType
Carton
Upc
707392026518
Upc
10707392026515
Upc
50707392026513
PricePerUnit
49.3500
PricePerUnit
49.3500
PricePerUnit
49.3500
PackageNetPrice
49.3500
PackageNetPrice
197.4000
PackageNetPrice
14805.0000
WeightLbs
1661.40
WeightLbs
22.15
WeightLbs
5.54
Packaging Quantity
15
Packaging Quantity
60
Packaging Quantity
4500
OrderIncrement
300
OrderIncrement
4
OrderIncrement
1
Key Features
  • Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
  • Available in 1/2" and 5/8" diameters
  • Standard fractional sizes — the hole size matches the anchor size
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • For added convenience, a 1/2" socket adapter and two T-drive bits included in each box
  • Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

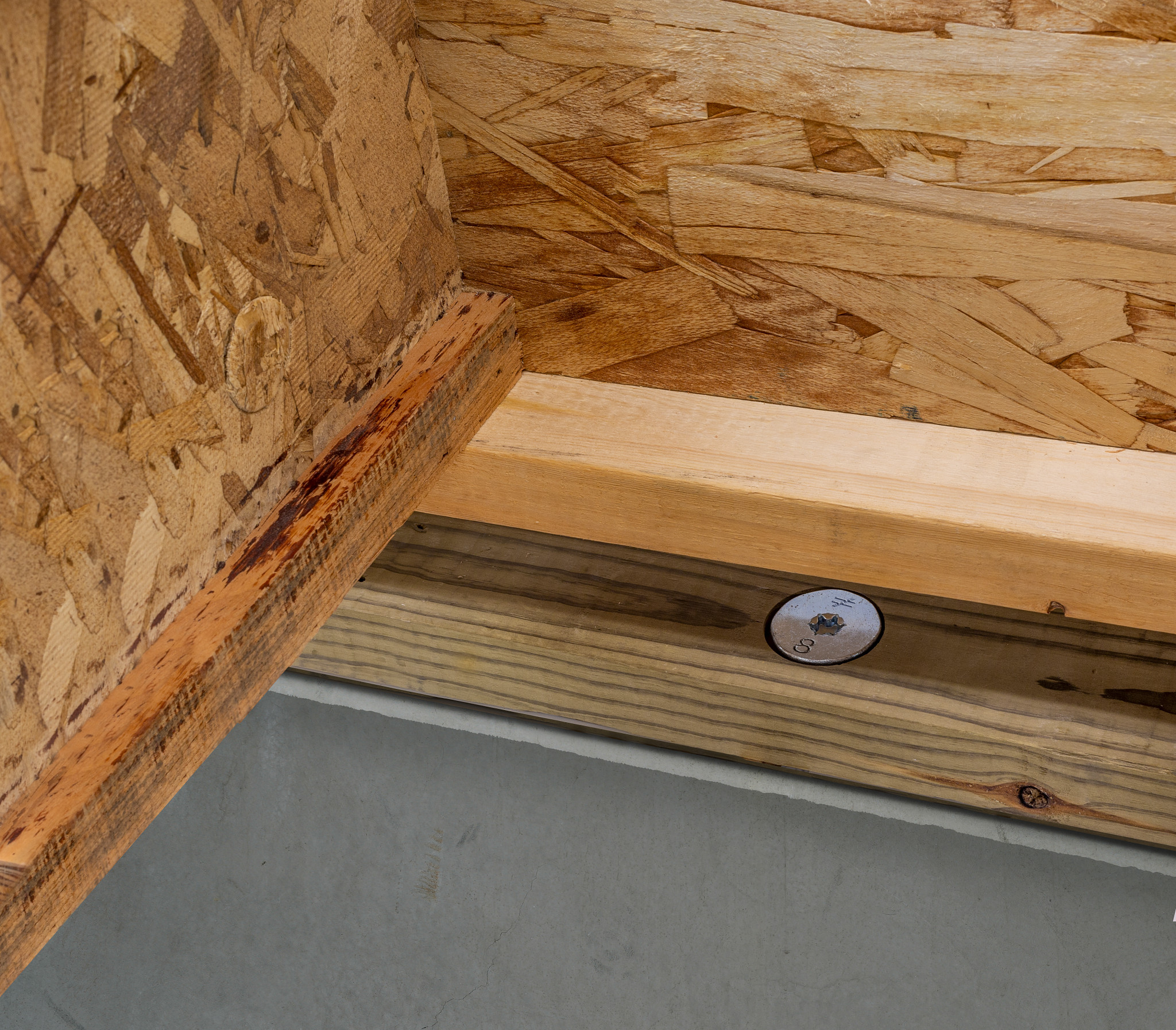

  • Washer head allows screw anchor applications incompatible with a hex head
  • Mechanically galvanized Titen HD is code listed for exterior applications
