STRONG-BOLT2 1/4 X 2-1/4 PAK 100
Item Number: STB2-25214F100
$42.00
/ Box of 100
Package Quantity:
100
- Zinc Plated / Carbon Steel

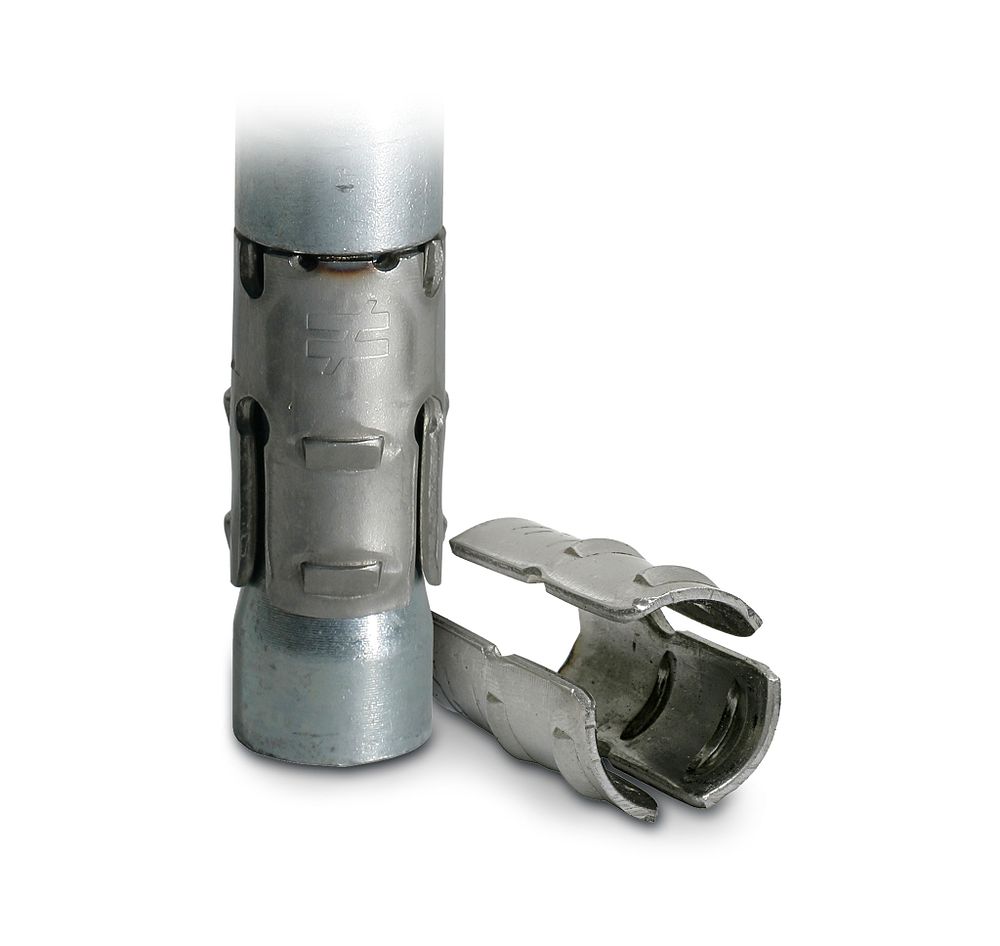

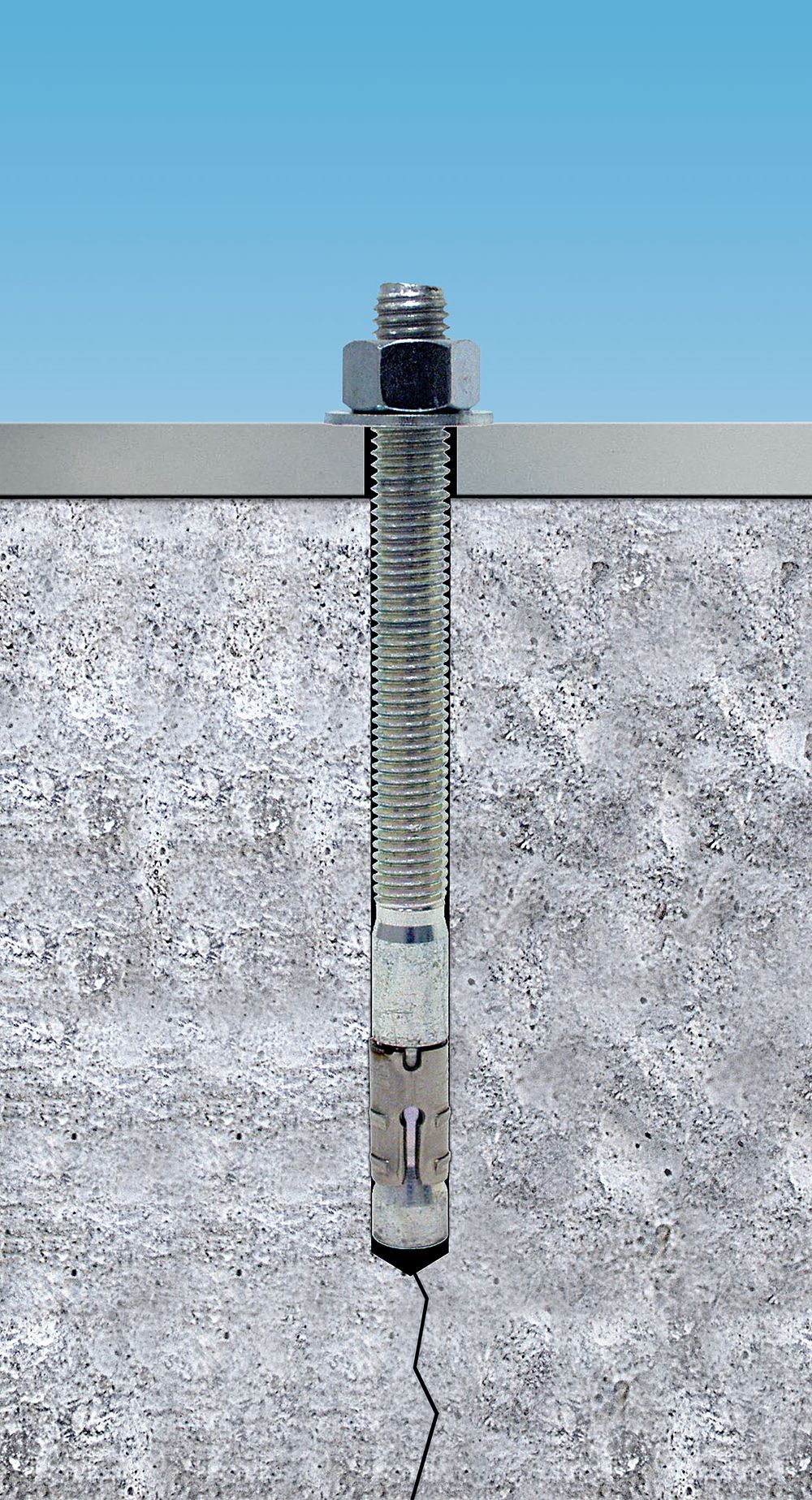

- Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

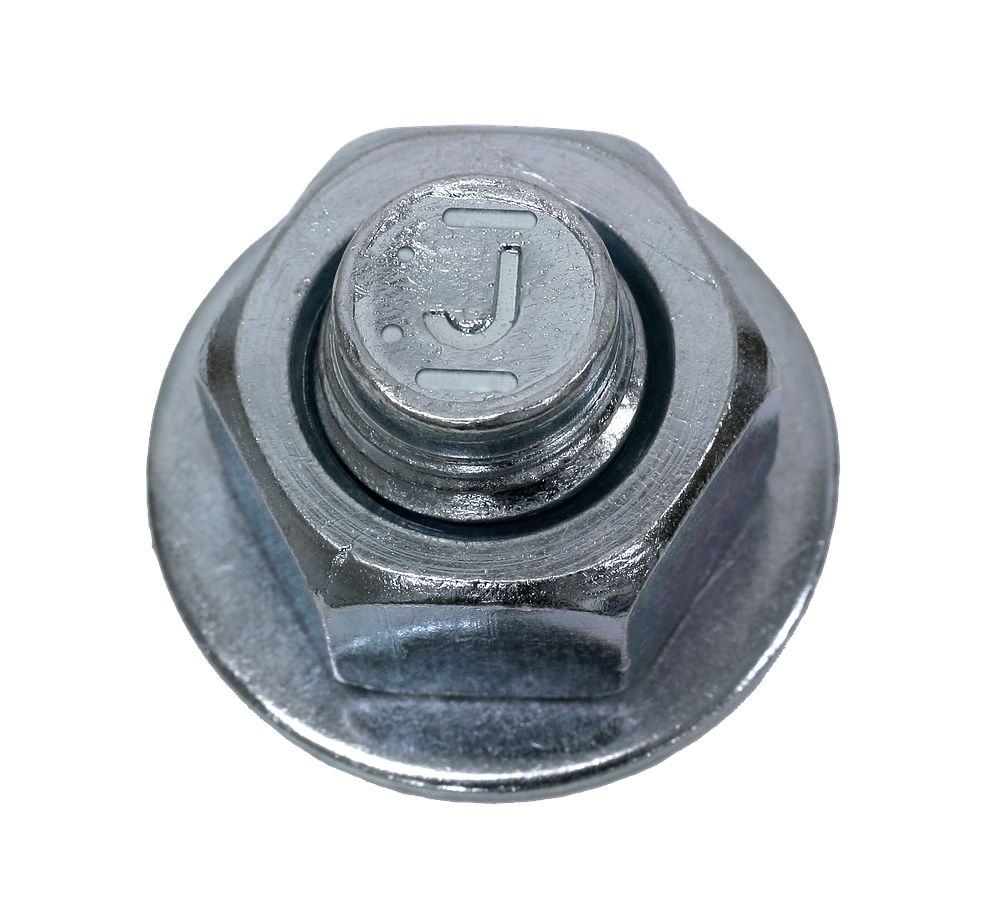

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
$42.00
/ $42.00 Box of 100
In Stock
Product Details
Details
Vendor
Simpson Strong Tie (1342)
Weight (lbs)
0.0374
Model No.
STB2-25214F100
Description
Fully Assembled
Coating/Material
Zinc Plated / Carbon Steel
Size (in.)
1/4 x 2 1/4
Drill Bit Dia. (in.)
1/4
Thread Length (in.)
1 7/16
Component Material, Anchor Body
Carbon Steel
Component Material, Nut
Carbon Steel ASTM A 563, Grade A
Component Material, Washer
Carbon Steel ASTM F844
Component Material, Clip
Carbon Steel ASTM A 568
Packaging Qty.
100
PackageType
Each
PackageType
Carton
PackageType
Pallet
Upc
10707392031120
Upc
50707392031128
Upc
707392031123
PricePerUnit
23.9900
PricePerUnit
23.9900
PricePerUnit
23.9900
PackageNetPrice
95.9600
PackageNetPrice
10075.8000
PackageNetPrice
23.9900
WeightLbs
3.74
WeightLbs
1570.38
WeightLbs
14.96
Packaging Quantity
400
Packaging Quantity
42000
Packaging Quantity
100
OrderIncrement
4
OrderIncrement
1
OrderIncrement
420
TPI
-
QtyEach
420
QtyEach
1
QtyEach
4
QtyPiece
400
QtyPiece
100
QtyPiece
42000
Key Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications

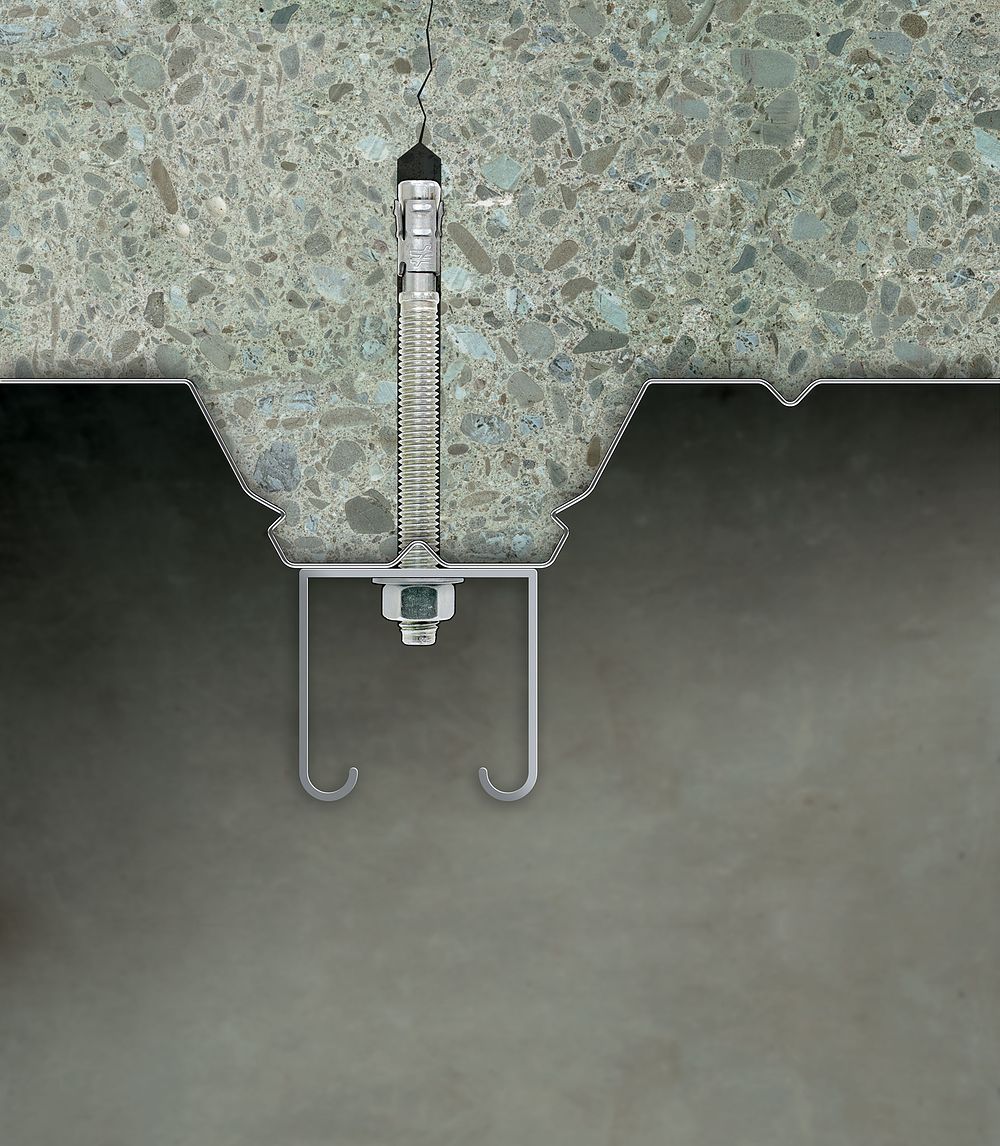

- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
