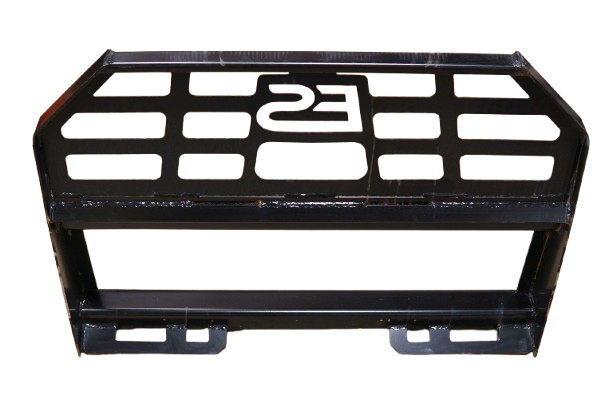

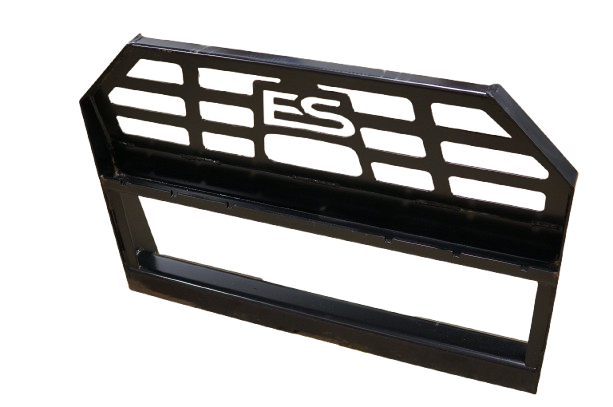

4000# STANDARD PALLET FORK FRAME - FRAME ONLY
Item Number: 10042
$600.00
/ Each
Package Quantity:
1
- UNIVERSAL QUICK ATTACH/ HEAD FRAME ONLY 4000LB CAP
- PALLET FORK FRAME ATTACHMENT - BLADES SOLD SEPARATELY
- 4,000 LB CAPACITY
- Universal quick attach pallet fork frame with a 4,000 lb capacity. Head frame only - fork blades are sold separately. One of the most popular ES attachments, these quick attach pallet forks are used by customers around the country for lifting, carrying, and moving pallets, logs, lumber, and other heavy loads. The mast frame is fully welded, and the forks lock in at multiple positions along the top rail so you can set the spacing to the load. Capacity: 4,000 lb Mounting: Universal skid steer quick attach (SSQA) Mast: 45-1/2" wide x 35-1/2" tall, 3/8" thick Mast height with forks installed: 38-3/4" Top rail to top of frame: 19" Finish: Powder coated black 100% manufactured in the USA with premium US steel Frame only. Fork blades sold separately - item # 10036FB, 10042FB, 10048FB, or 10060FB.
- 4,000 lb lifting capacity
- Universal skid steer quick attach (SSQA) - fits most skid steers and compact track loaders
- Fully welded mast frame
$600.00
/ $600.00 Each
In Stock
Details
Vendor
Express Steel Inc. (0322)
Attachment Type
Universal Skid Steer Quick Attach (SSQA)
Mast Width
45-1/2"
Mast Height
35-1/2"
Mast Height with Forks Installed
38-3/4"

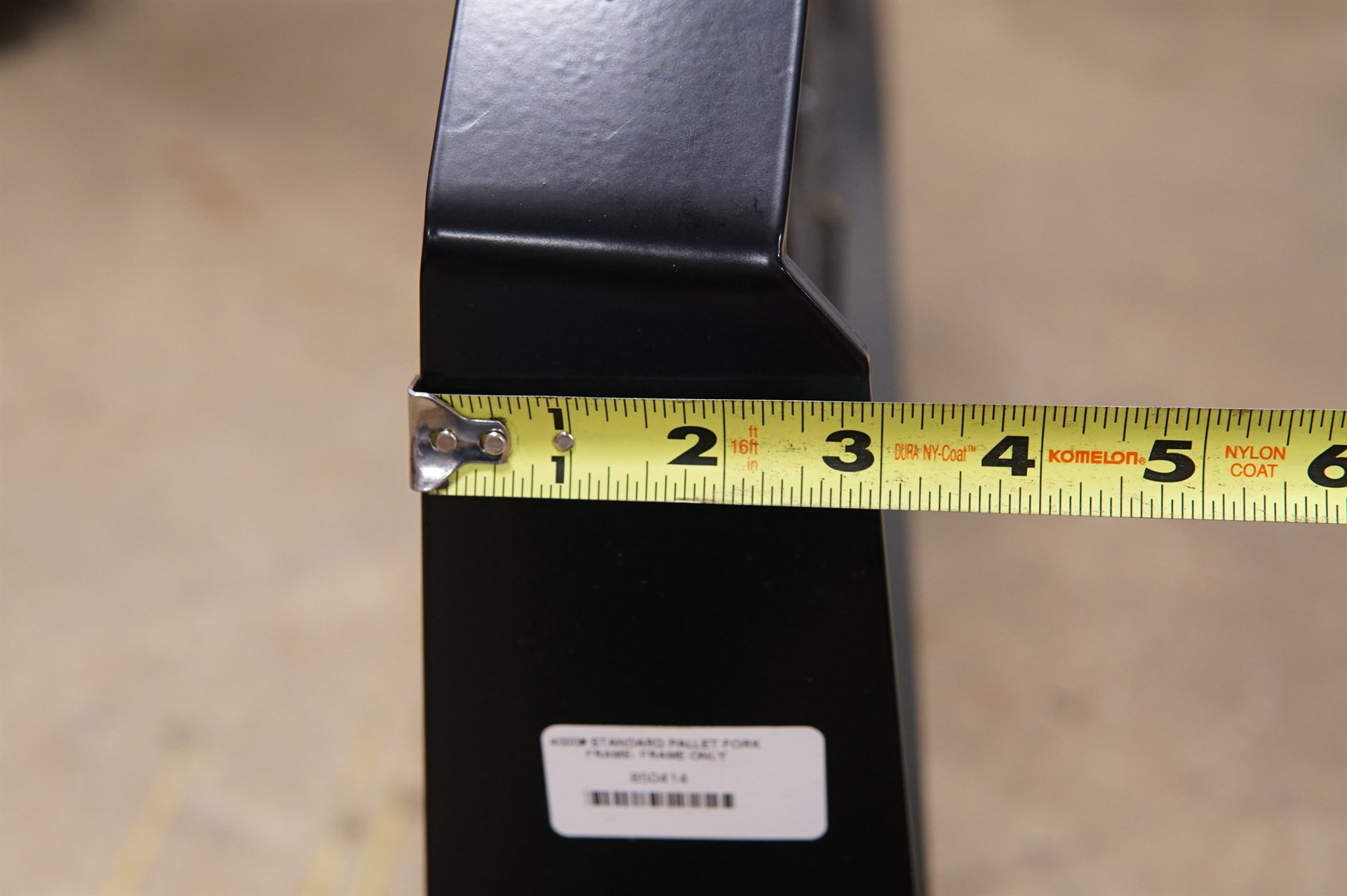

Mast Thickness
3/8"

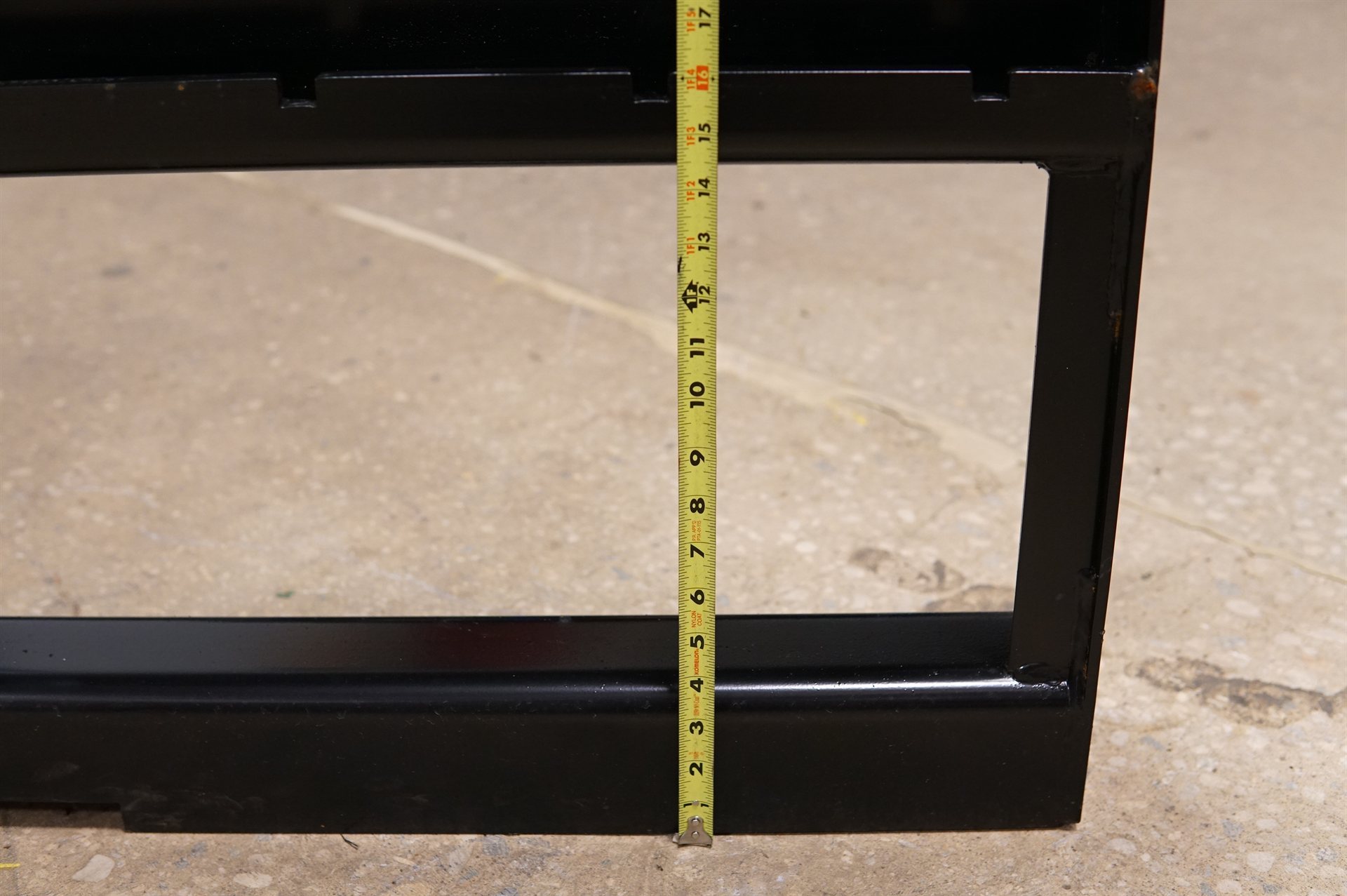

Top Rail to Top of Frame
19"
Frame Construction
Fully welded mast frame
Fork Adjustment
Fully adjustable - forks lock in at multiple positions
Compatible Fork Blade Lengths
36", 42", 48", 60"
Fork Blade Class
Class II
Finish
Powder coated black
Material
Premium US steel
Country of Origin
Made in the USA
Included
Head frame only - fork blades are not included
Sold Separately
Fork blades: item # 10036FB, 10042FB, 10048FB, 10060FB
Typical Uses
Lifting, carrying, and moving pallets, logs, lumber, and other heavy loads
Sold As
Frame only. Fork blades sold separately.
Weight
135 lbs
Capacity
4,000 lbs lift capacity
Shipping
Shipping calculated at checkout. Ships UPS Ground.
Key Features
- 4,000 lb lifting capacity
- Universal skid steer quick attach (SSQA) - fits most skid steers and compact track loaders
- Fully welded mast frame
- Forks lock in at multiple positions so you can set spacing to the load
- 100% manufactured in the USA with premium US steel
